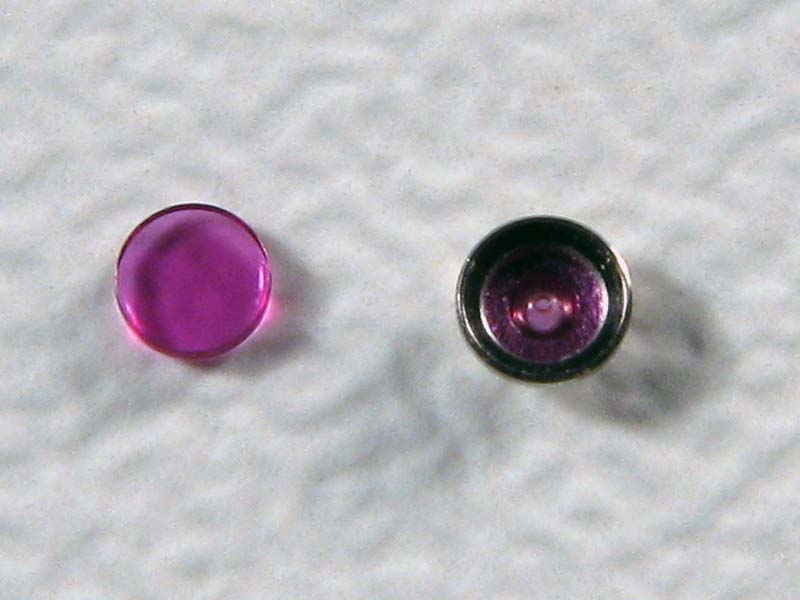

The Cap Jewel
(315) that
locks the balance pivot in the axial direction can be seen to the left in the
figure. It is sometimes called end-stone. The cap jewel is often part of
a shock-protection system. To the right is the Balance pivot jewel bearing
in its housing, the bearing hole diameter is
typically 0.1 mm.
|
|
|
|
|
|

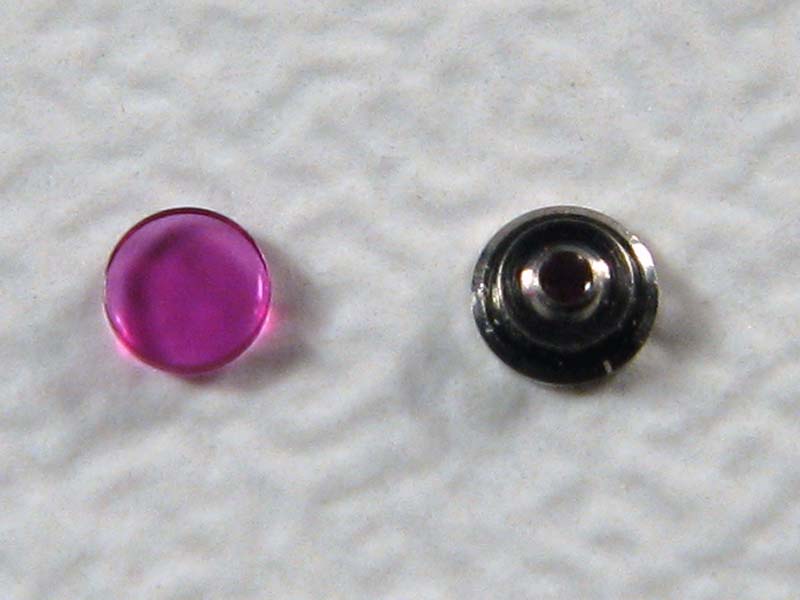

The same picture as above but with the
Balance pivot bearing housing turned up-side down.
|
|
|
|
|
|

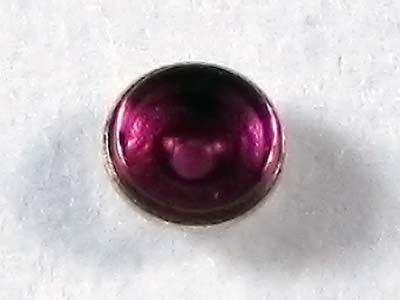

The Cap Jewel in place in the bearing housing.
|
|
|
|
|
|

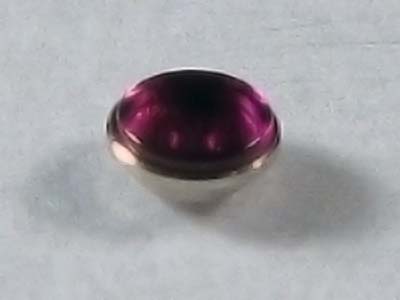

Another angle where the hole in the pivot
bearing can be seen through the end-stone.
|
|
|
|
|

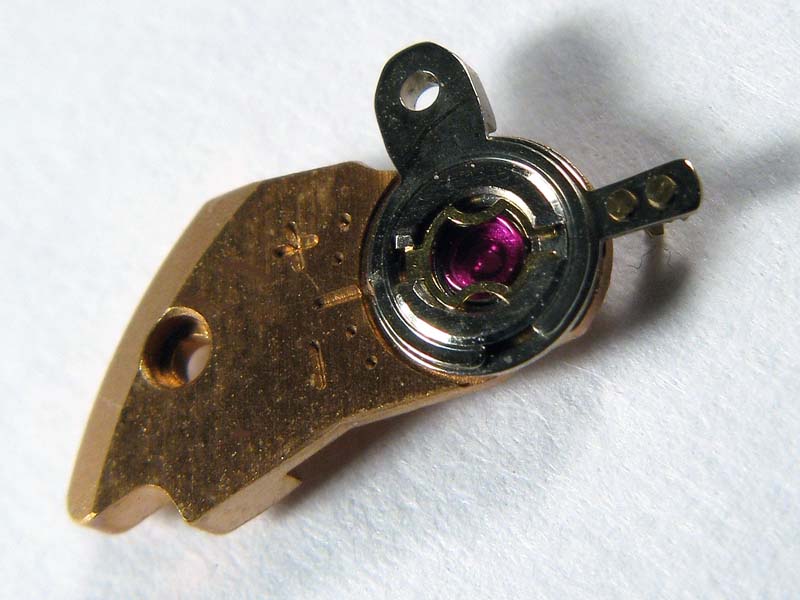

| The balance pivot bearing in place in the shock-protection system in the balance cock. |
